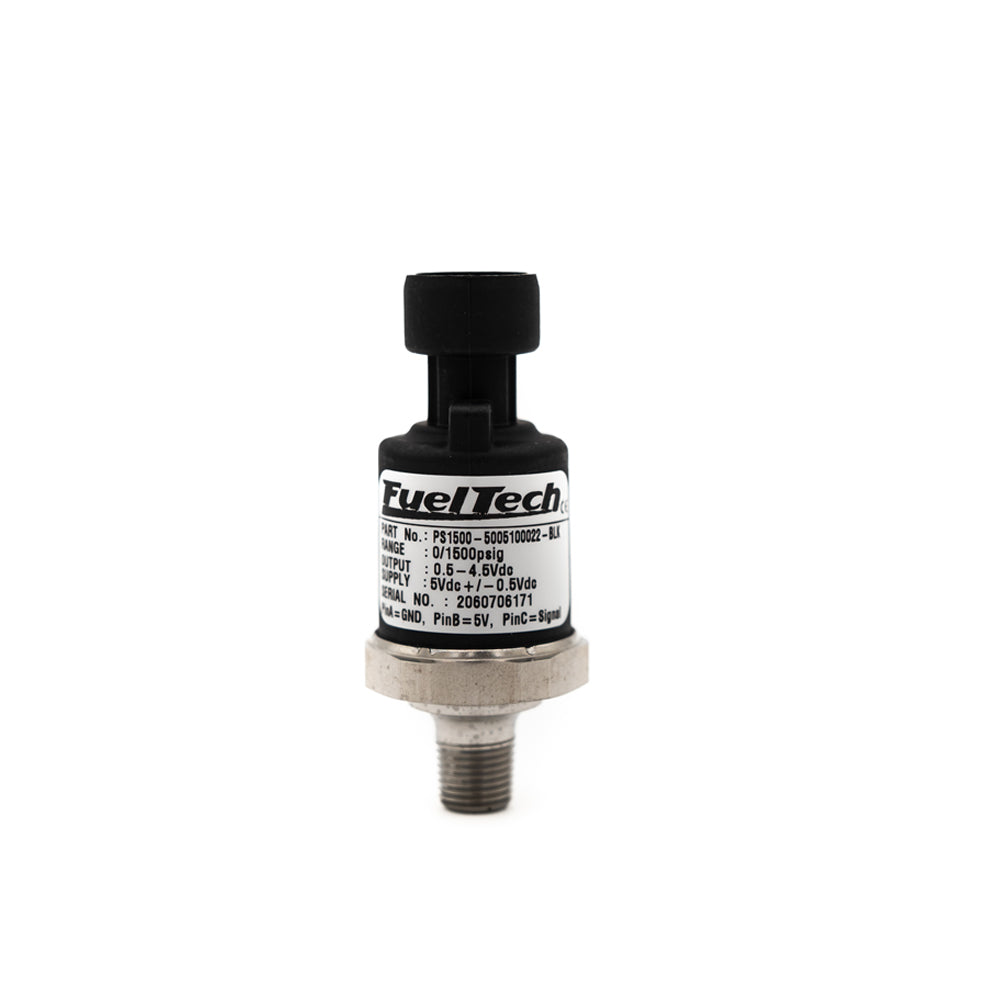

FuelTech - PS-1500 Pressure Sensor (0-1500 PSI)

SKU:5005100022-BLK

Category: Pressure Sensors
Vendor: FuelTech

You save 22% ($34.00)

$119.00

~~$145.00~~ $119.00

Sale Sold out

Shipping calculated at checkout.

In Stock

🔥 sold in last hours

Body Construction Black Composite

Options w/o Mating Plug Kit w/ Mating Plug Kit

Quantity

Typically used to monitor nitrous bottle and brake pressure.
Output: 0.5-4.5V
Supply: 5V
Range: 0-1500 psi
Thread size: 1/8" NPT

Connector Pinout:

A - Ground
B - 5V
C - Signal

SPECS

Performance Long Term Drift: 0.2% FS/YR (non-cumulative)

Accuracy: 0.25% FS

Thermal Error: 0.83% FS/100°F (1.5% FS/100°C)

Compensated Temp: -40°F to +257°F (-40°C to +125°C)

Operating Temp: -40°F to +257°F (-40°C to +125°C)

Zero Tolerance: 0.5% of span

Span Tolerance: 0.5% of span

Response Time: 1ms

Fatigue Life: 1M Cycles

Wetted Parts: 17-4 PH Stainless Steel

Enclosure: IP67 (IP65 for electrical code G)

Vibration: 40G peak to peak sinusoidal, (Random Vibration 20 to 1000hz @ approx 40G peak per MIL-STD-810E)

Shock: Withstands free fall to IEC 68-2-32 procedure 1

EMC (Radiated Immunity): 100V/m

Approvals: CE, conforms to European Pressure Directive, Fully RoHS compliant, UL recognized files #E219842 & E174228

Weight: 35 Grams
